Here's a Brief Description:
Functionality: The SN74273N is a digital logic IC that contains eight D-type flip-flops with a clear function.Inputs: Each flip-flop typically has a Data (D) input, a Clock (CLK) input, and a Clear (CLR) input.
Outputs: The outputs are the Q and Q' (complement of Q) outputs of the flip-flops.
Clear Function: The Clear (CLR) input is used to asynchronously reset or clear the state of the flip-flops.
Clock Input: The clock input (CLK) is used to control the timing of the flip-flop operation.
Edge-Triggered: The flip-flops are generally edge-triggered, responding to transitions at the clock input.
Parallel Load: The flip-flops often support parallel loading of data when a specific condition is met.
Power Supply: The SN74273N typically operates within a certain voltage range, and its power supply requirements depend on the specific model. It often works with low voltages, making it suitable for various applications.
Logic Family: The "74" in SN74273N indicates that it belongs to the TTL (Transistor-Transistor Logic) logic family.
Package Type: The "N" in SN74273N indicates the package type, often available in various package options, commonly a 20-pin dual in-line package (DIP).
Applications:
D-type flip-flops are fundamental building blocks in digital circuits and are used for various applications such as memory elements, sequential logic, and state machines.
Propagation Delay: The propagation delay is the time taken for a change in input to result in a change in the output. TTL series devices generally have moderate propagation delays.
Features
- Contain Eight Flip-Flops With Single-Rail Outputs
- Buffered Clock and Direct-Clear Inputs
- Individual Data Input to Each Flip-Flop
Applications
- Buffer/Storage Registers
- Shift Registers
- Pattern Generators
- Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.
Physical Attributes
- Length * Width * Height (mm): 19.3 x 6.35 x 4.57
- Weight (gm): 2
Documentation
Package Includes

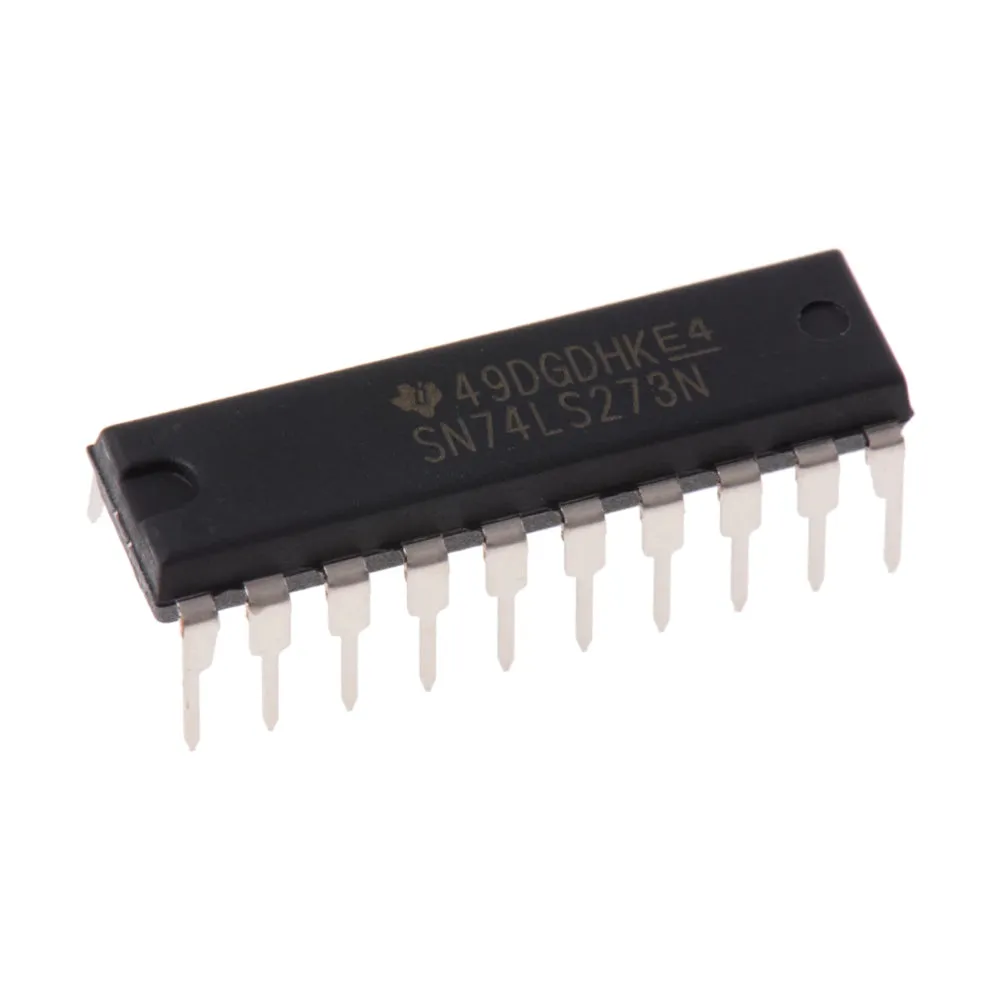

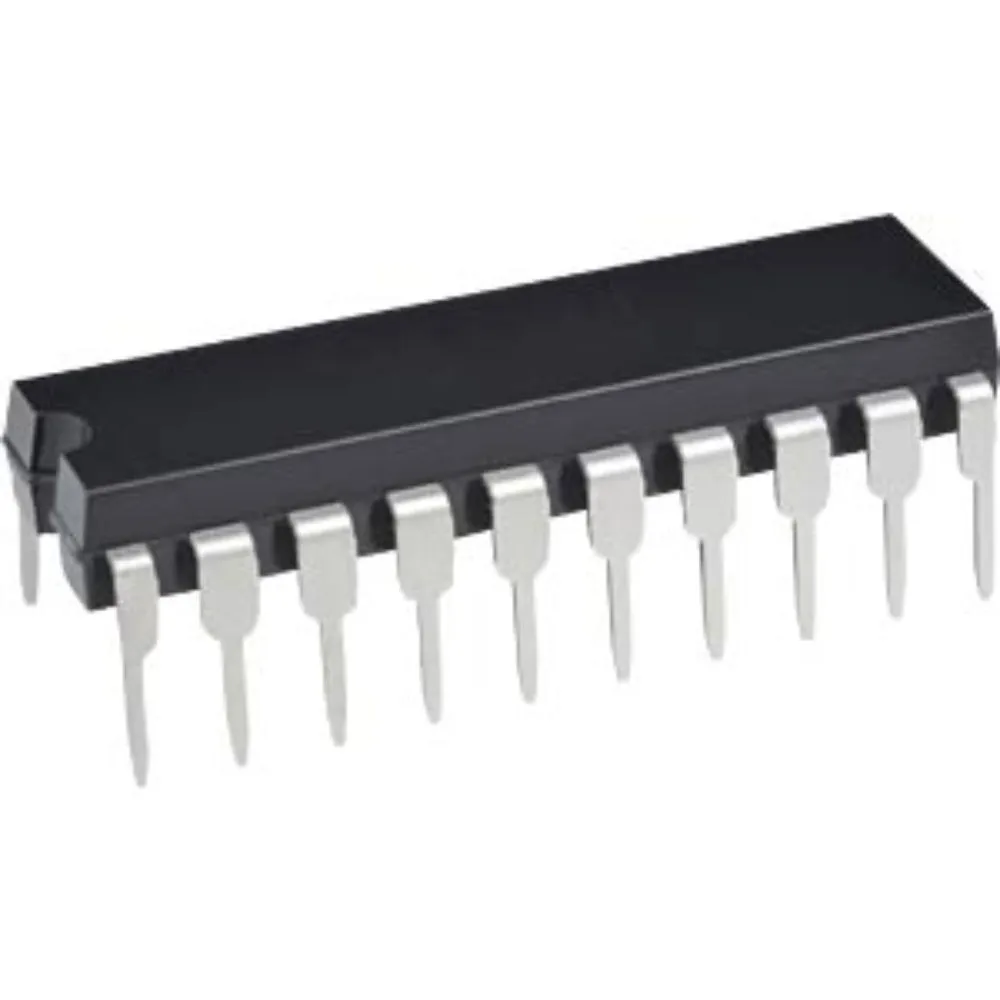

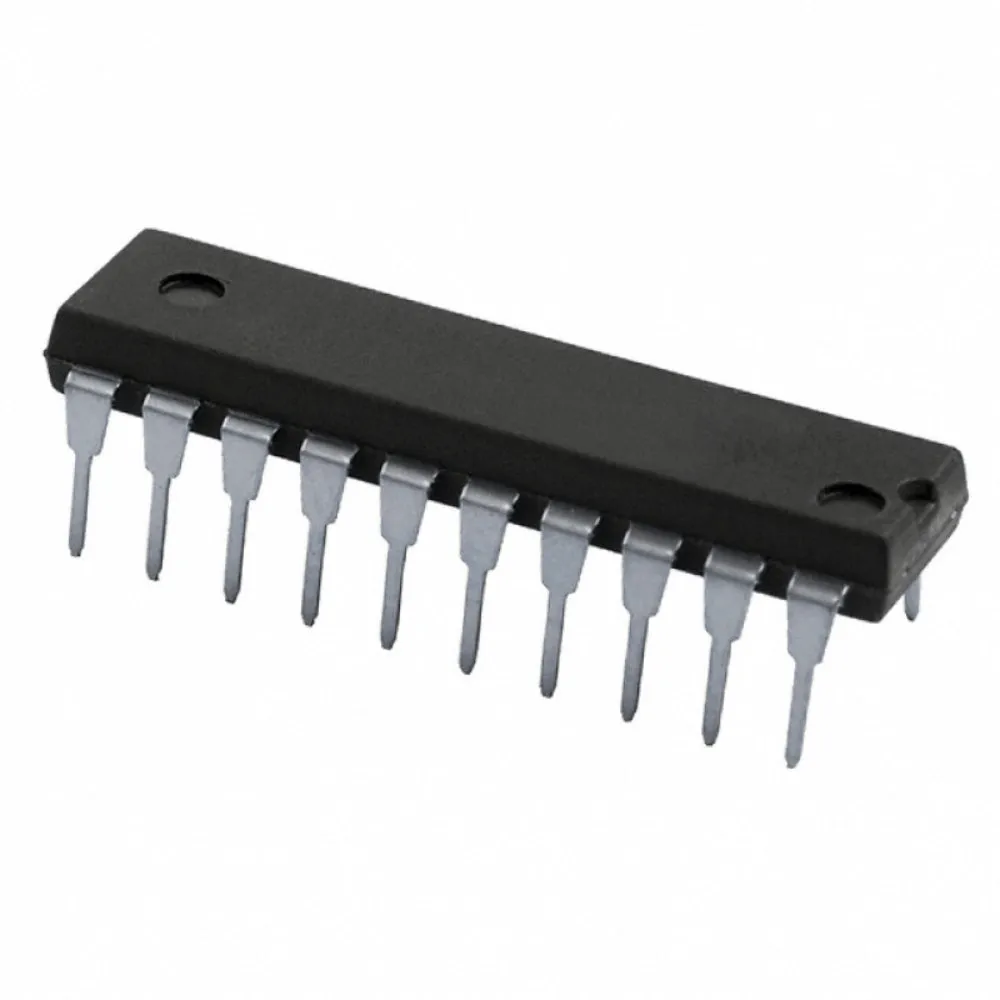

- 1 xSN74273N Octal D-Type Flip-Flops DIP-20
